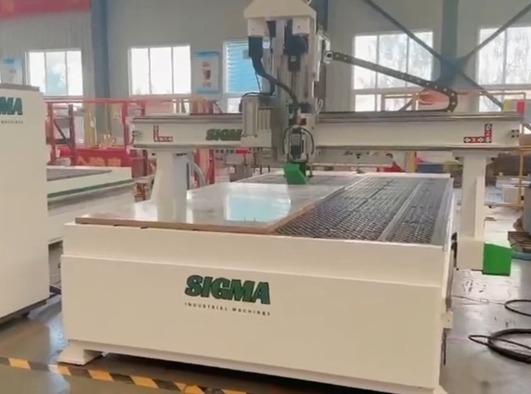

CNC CENTER MACHINE - SIGMA
| CNC CENTER MACHINE - SIGMA | |
|---|---|
|
|
|
|
Brand |
SIGMA |
|
Industry |
China |
|
Model |
H2-16 ATC |
|
Type |
wood CNC machine with boring head |
|
Frame |
heavy welded bed |
|
Dimensions |
5000 mm × 2500 mm × 2400 mm |
|
Max work size |
4000*2100*350 mm |
|
Transmission |
Rack gear / square rail Italy PRK 30, TBLball screw 25 |
|
Spindle |
9 kw air cooling CC spindle (support c axis) |
|
Boring head |
CC (9 VERTICAL + 4 HORIZONTAL ) |
|
Spindle RPM |
0 – 24,000 |
|
Control system |
syntec + wireless handle (support c axis) |
|
Description |
– Tool change : 16 tools with ISO 30 holder – Vacuum : The machine with table vacuum The machine include 2 vacuum pump each one 7.5 kw – Electricity : 380V , 50hz , 3ph |
|
